A thread plug gage is used to check acceptance of a ânutâ , (an internally threaded part).
Master setting ring is used to check ID with the help of dial bore gauge.

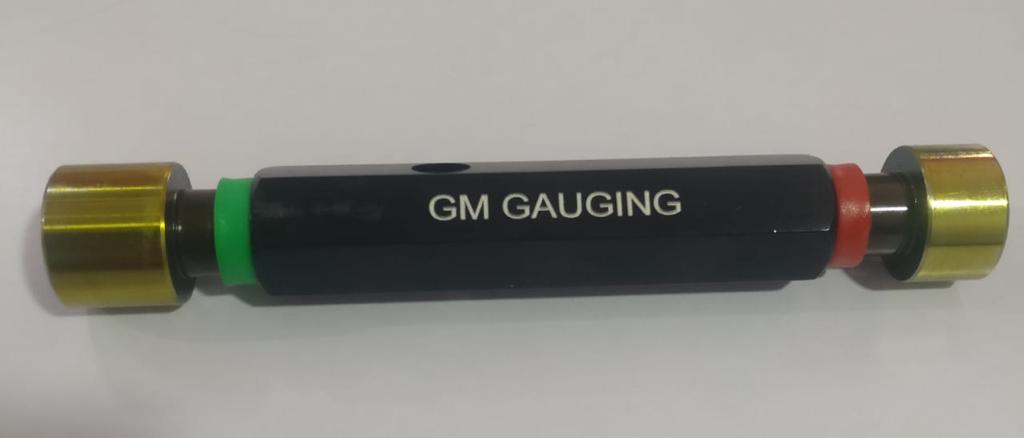

Plain plug gauge is used to check ID of component.
Master setting disc are used to check OD of a component with help of comparator.

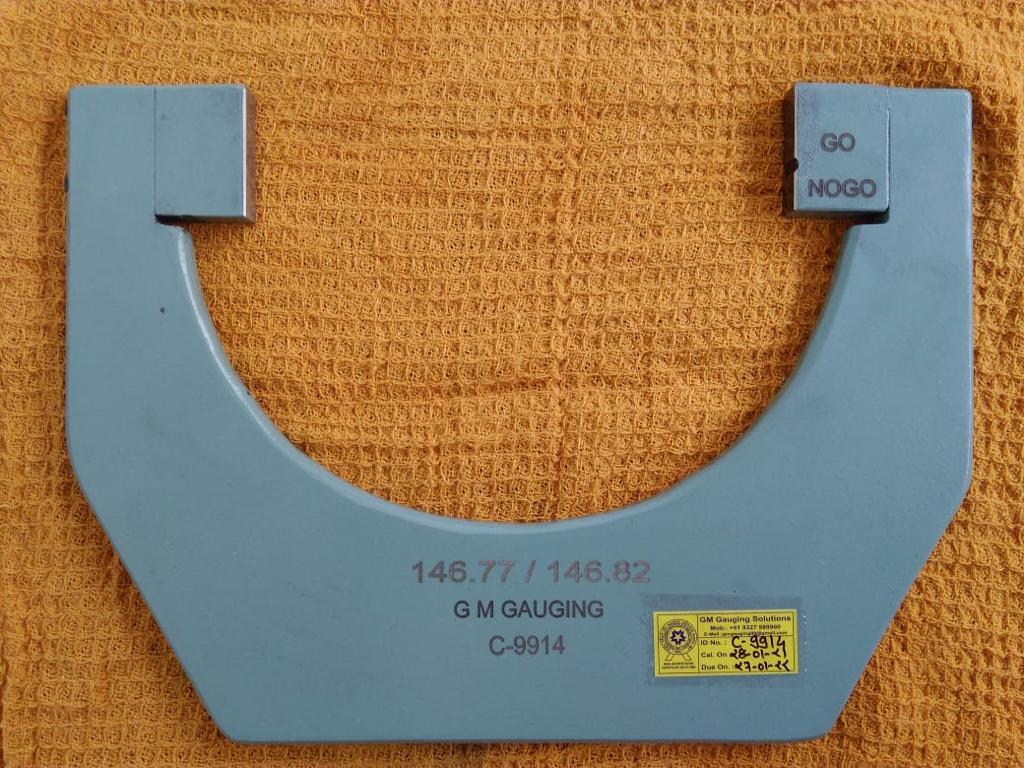

A snap gage is a form of go/no go gauge. It is a limit gage with permanently or temporarily fixed measurement aperture.

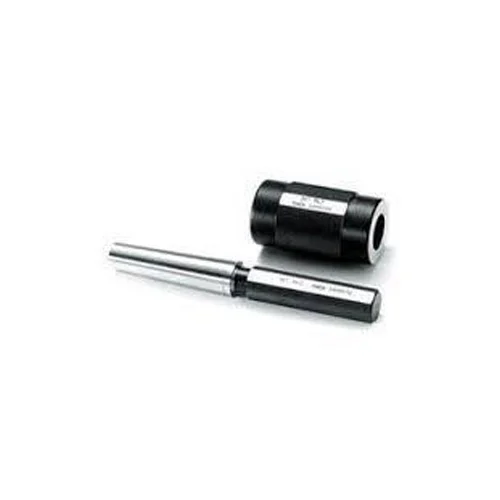

Taper plug gauge and taper ring gauge are used to measure internal taper and outer taper of a component respectively.
test detail
test detail

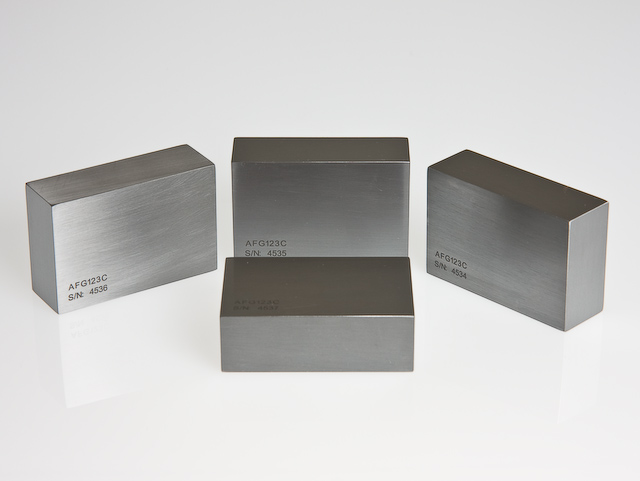

Height block is used to measure the height of component by comparison method.

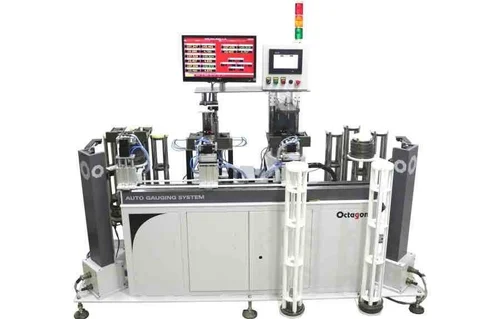

Multi gauge is customized gauging solutions to measure a number of dimensions simultaneously.

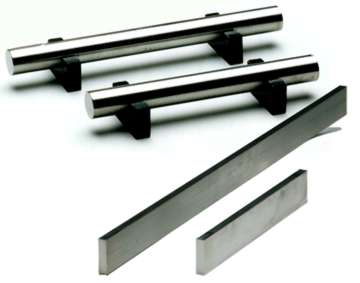

Length bar is used to measure length of a component by comparison method.
A plunger dial gauge, also known as a dial indicator, is a mechanical instrument used to measure small linear distances or displacements. It is a very precise tool commonly used in machine shops, manufacturing, and other industrial applications.
Air plug gauge with high and low setting master

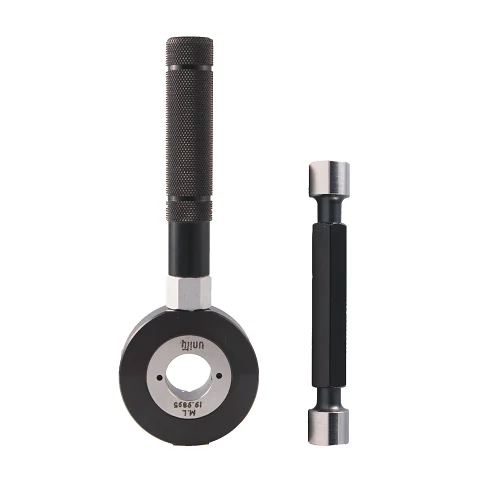

Air ring gauge with high and low setting master

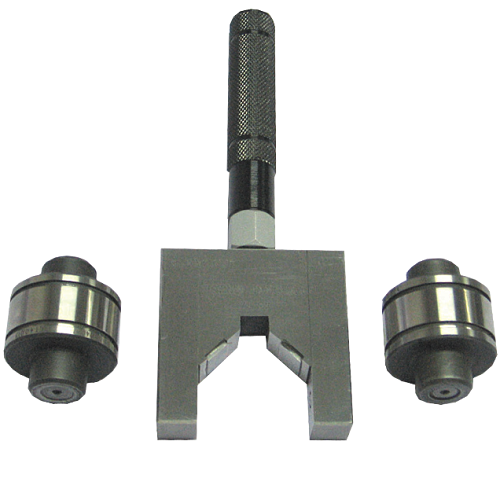

Air snap gauge with high and low setting master

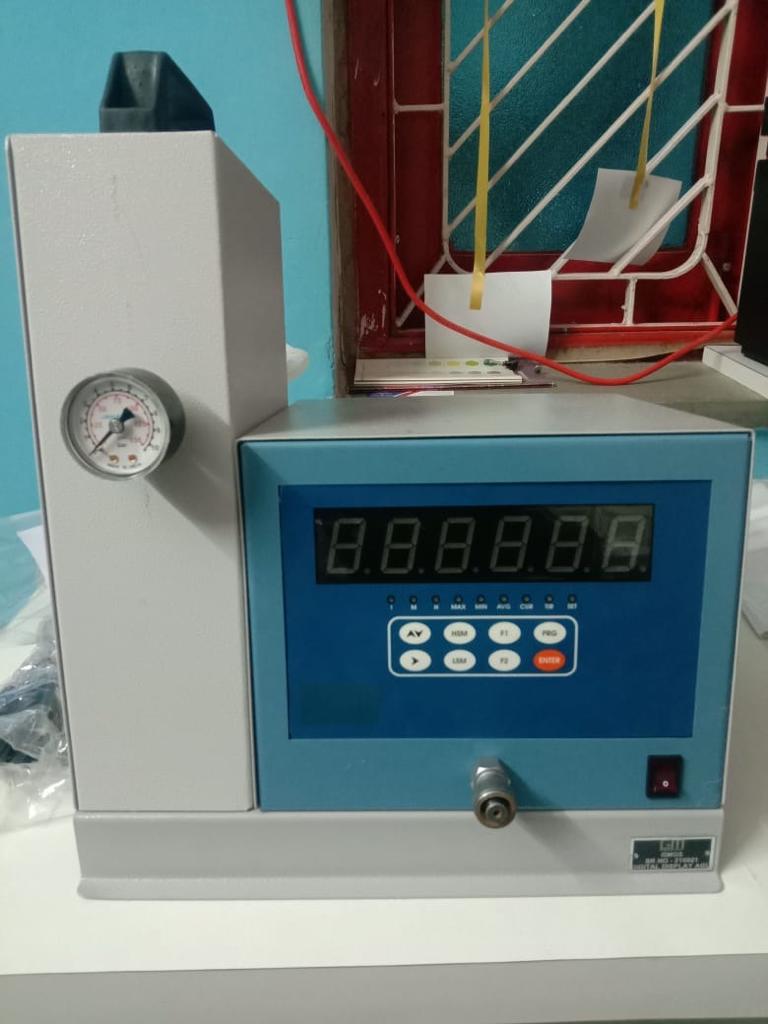

Electronic air gauge is used to measure precision ID and OD of a component.

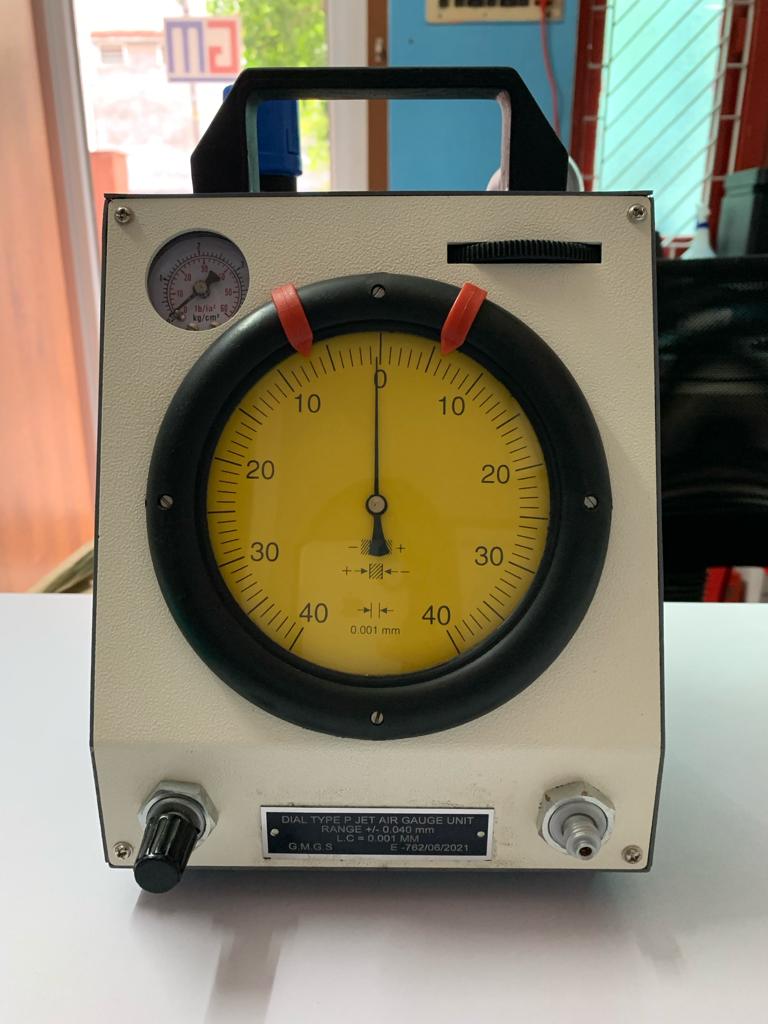

Dial type air gauge is used to measure precision ID and OD of component.

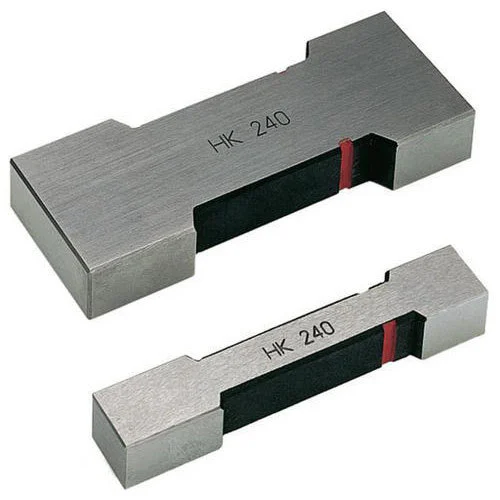

Width gauge is used to check width of a component.

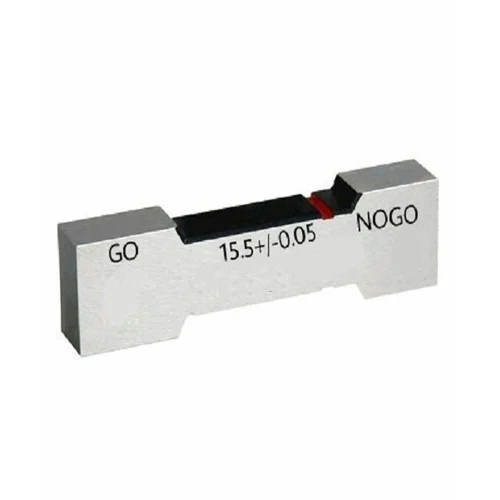

Key way width gauge is used to check key way width of the given component.
Paddle Gauge. ... Widely used to measure internal diameters above 80 mm up to 500 mm.

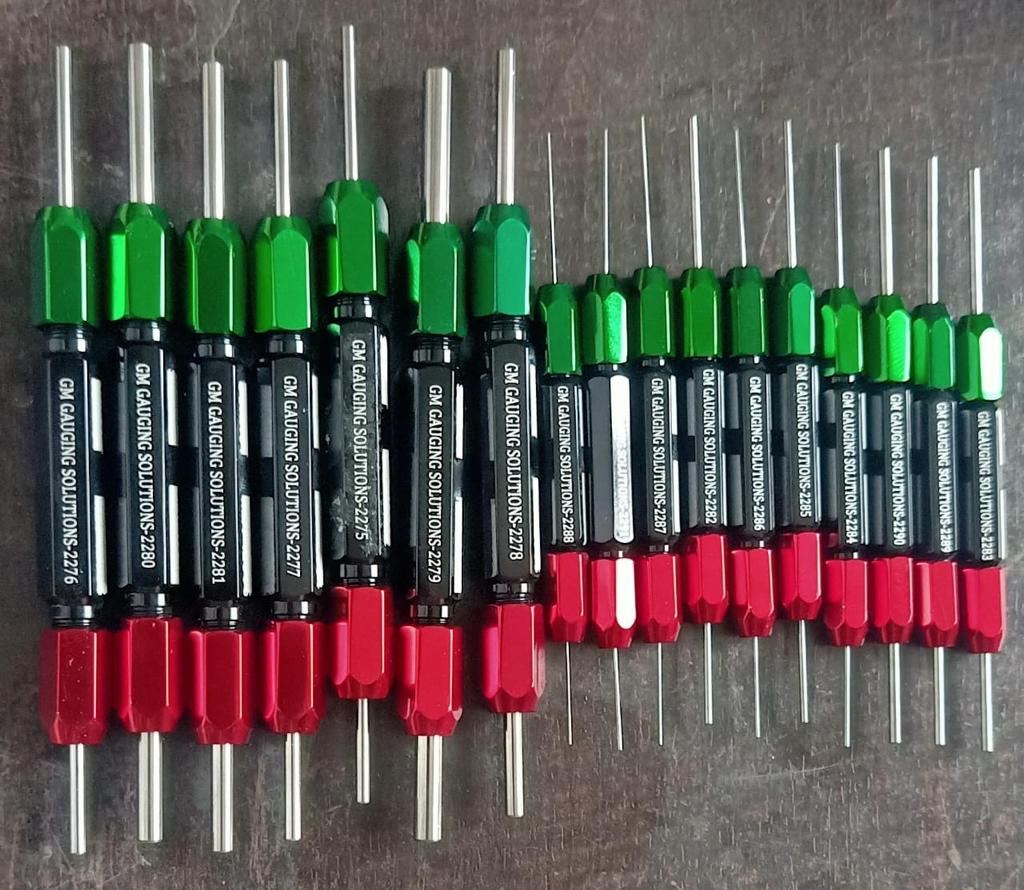

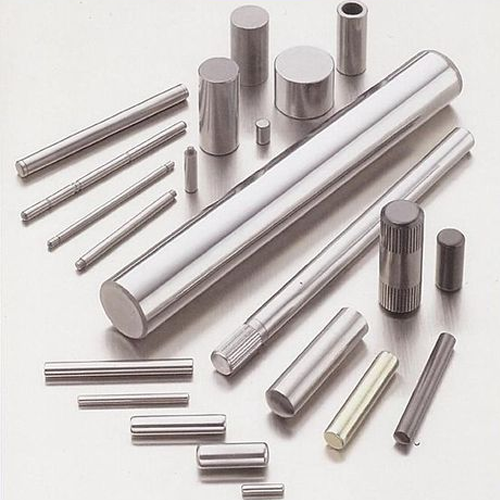

Measuring pins are high- precision testing gauges with a tolerance of ± 1 µm in tolerance class I.

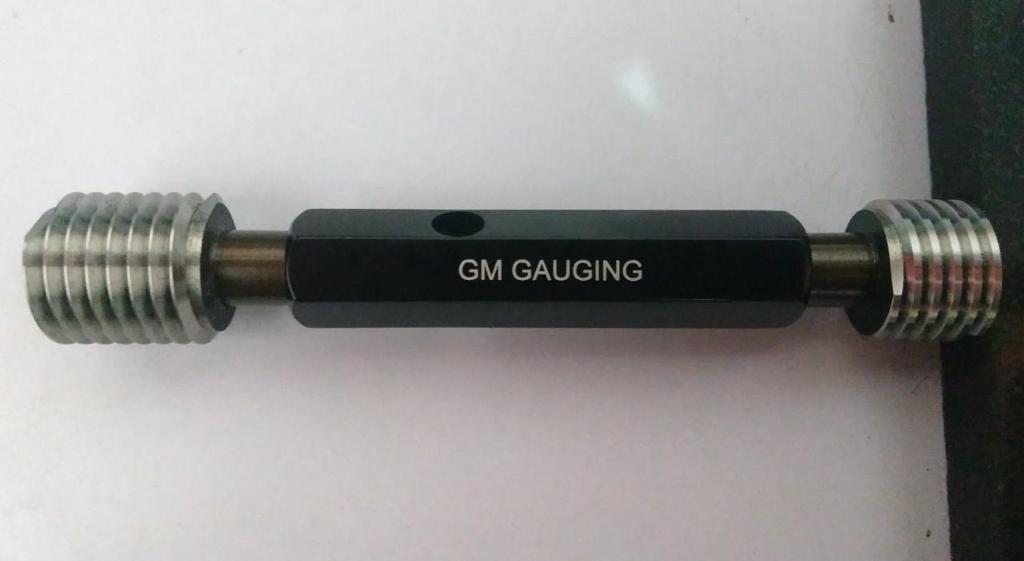

Thread plug gages are used to check tolerances of threaded parts according to a certain specification. These highly specific calibration tools are used to assure the assembly of mating parts and provide quality control and conformity to standards.

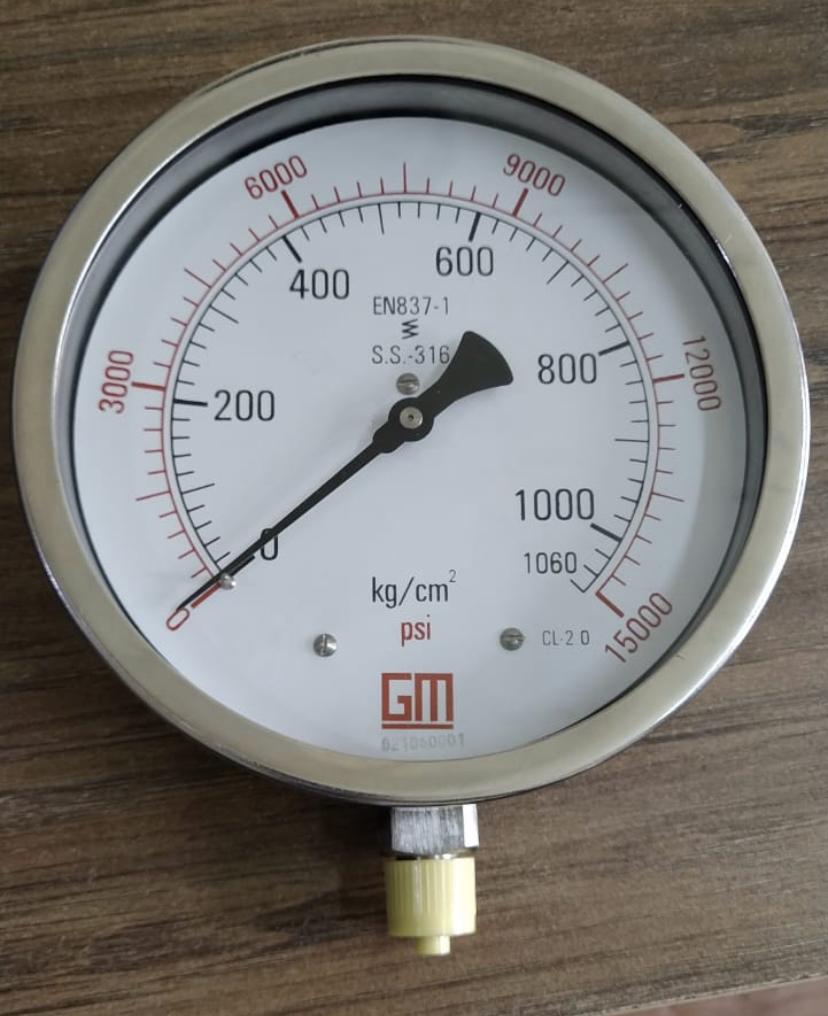

The pressure gauge is also known as pressure meters or vacuum gauges. A device that uses the surface area and weight of a liquid column to measure and indicate pressure is known as a manometer. Most gauges calculate the pressure relative to atmospheric pressure as the zero point.
